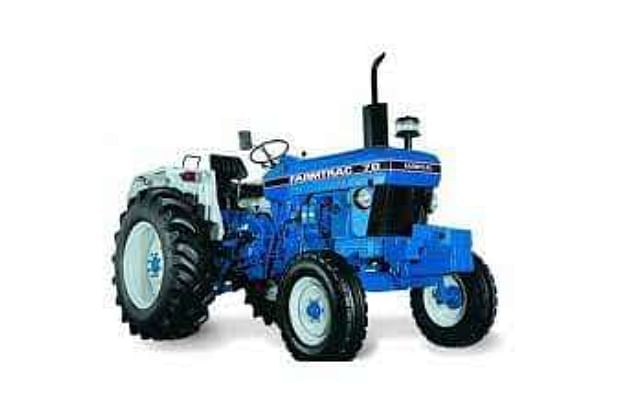

Farmtrac 70 Images

Farmtrac 70
Farmtrac 70

Farmtrac 70 Detailed Overview

Overview
The Farmtrac 70, a utility tractor, embodies power, efficiency, and reliability. Manufactured by Farmtrac, this model delivers exceptional performance to meet diverse agricultural needs.
Summary
Engine Power and Performance
The Farmtrac 70 is equipped with a robust 3.3L, 3-cylinder diesel engine, delivering a power-packed performance of 60 hp (44.7 kW) at 2200 RPM. The liquid-cooled engine ensures optimal operating conditions, with an oil capacity of 6 quarts (5.7 L) and a coolant capacity of 14.4 quarts (13.6 L).
Summary
Summary: A high-performance 3.3L diesel engine generating 60 hp at 2200 RPM, supported by efficient cooling systems.
Transmission and Mechanical Features
The tractor boasts a 12-speed transmission with both forward and reverse gears, providing versatility in operations. The mechanical chassis is designed for 4x2 2WD, ensuring effective maneuverability.
Summary
Summary: Versatile 12-speed transmission with 4x2 2WD mechanical chassis for enhanced operational flexibility.
Fuel and Hydraulic Capacities
With a fuel capacity of 16 gallons (60.6 L) and a hydraulic system capacity of 9 gallons (34.1 L), the Farmtrac 70 ensures extended operation without frequent refueling. The hydraulic system, equipped with 2 valves, delivers a total flow of 9 gallons per minute (34.1 liters per minute).
Summary
Summary: Ample fuel and hydraulic capacities, featuring a 16-gallon fuel tank and a 9-gallon hydraulic system with efficient valve control.
Hitch and Power Take-Off (PTO)
The rear hitch of Type II and a lift capacity of 5,280 lbs (2395 kg) at ends ensure efficient handling of heavy implements. The independent rear PTO operates at 540 RPM, delivering reliable power to various attachments.
Summary
Summary: A robust rear hitch with Type II design and a powerful independent rear PTO operating at 540 RPM.
Tires and Dimensions
The Farmtrac 70 is equipped with 7.50-16 front tires and 16.9-28 rear tires, providing traction and stability across different terrains. With a wheelbase of 84 inches (213 cm), the tractor ensures balance and control during operations.
Summary
Summary: Sturdy tire configuration (7.50-16 front, 16.9-28 rear) and an 84-inch wheelbase for stability and control.
